State Objects#

Modeling dynamic systems through state objects provides a unifying abstraction: every system, regardless of its complexity, evolves through changes in its state.

By encapsulating state variables in dedicated objects, we gain:

  • Clarity - separating system variables from equations and algorithms.

  • Consistency - a common interface for kinematics, sensors, filters, and environments.

  • Flexibility - seamless extension to new models and operations without rewriting the core logic.

This approach turns the state into a first-class entity, making simulation and algorithm development both intuitive and scalable.

In c4dynamics, state objects stand at the core of the framework, serving as the foundation upon which all models, algorithms, and simulations are built.

State Data-Structure#

C4dynamics offers versatile data-structures for managing state variables.

Users from a range of disciplines, particularly those involving mathematical modeling, simulations, and dynamic systems, can define a state with any desired variables, for example:

Control Systems

  • Pendulum

  • \(X = [\theta, \omega]^T\)

  • Angle, angular velocity.

  • s = c4d.state(theta = 10 * c4d.d2r, omega = 0)

Navigation

  • Strapdown navigation system

  • \(X = [x, y, z, v_x, v_y, v_z, q_0, q_1, q_2, q_3, b_{ax}, b_{ay}, b_{az}]^T\)

  • Position, velocity, quaternions, biases.

  • s = c4d.state(x = 0, y = 0, z = 0, vx = 0, vy = 0, vz = 0, q0 = 0, q1 = 0, q2 = 0, q3 = 0, bax = 0, bay = 0, baz = 0)

Computer Vision

  • Objects tracker

  • \(X = [x, y, w, h]^T\)

  • Center pixel, bounding box size.

  • s = c4d.state(x = 960, y = 540, w = 20, h = 10)

Aerospace

  • Aircraft

  • \(X = [x, y, z, v_x, v_y, v_z, \varphi, \theta, \psi, p, q, r]^T\)

  • Position, velocity, angles, angular velocities.

  • s = c4d.state(x = 0, y = 0, z = 0, vx = 0, vy = 0, vz = 0, phi = 0, theta = 0, psi = 0, p = 0, q = 0, r = 0)

Autonomous Systems

  • Self-driving car

  • \(X = [x, y, z, \theta, \omega]^T\)

  • Position and velocity, heading and angular velocity.

  • s = c4d.state(x = 0, y = 0, v = 0, theta = 0, omega = 0)

Robotics

  • Robot arm

  • \(X = [\theta_1, \theta_2, \omega_1, \omega_2]^T\)

  • Joint angles, angular velocities.

  • s = c4d.state(theta1 = 0, theta2 = 0, omega1 = 0, omega2 = 0)

And many others.

These data-structures encapsulate the variables into a state vector \(X\) (a numpy array), allows for seamless execution of vector operations on the state, enabling efficient and intuitive manipulations of the state data.

Operations#

Operations on state vectors are categorized into two main types: mathematical operations and data management operations.

The mathematical operations involve direct manipulation of the state vectors using mathematical methods. These operations include multiplication, addition, and normalization, and can be performed by standard numpy methods.

The data management operations involve managing the state vector data, such as storing and retrieving states at different times or handling time series data. To perform these operations, c4dynamics provides a variety of methods under the state object.

The following tables summarize the mathematical and data management operations on a state vector.

Let an arbitrary state vector with variables \(x = 1, y = 0, z = 0\):

Import c4dynamics:

>>> import c4dynamics as c4d
>>> s = c4d.state(x = 1, y = 0, z = 0)
>>> print(s)
[ x  y  z ]
>>> s.X
[1  0  0]
Mathematical Operations#

Operation

Example

Scalar Multiplication

>>> s.X * 2
[2  0  0]

Matrix Multiplication

>>> R = c4d.rotmat.dcm321(psi = c4d.pi / 2)
>>> s.X @ R
[0  1  0]

Norm Calculation

>>> np.linalg.norm(s.X)
1

Addition/Subtraction

>>> s.X + [-1, 0, 0]
[0  0  0]

Dot Product

>>> s.X @ s.X
1

Normalization

>>> s.X / np.linalg.norm(s.X)
[1  0  0]
Data Management Operations#

Operation

Example

Store the current state

>>> s.store()

Store with time-stamp

>>> s.store(t = 0)

Store the state in a for-loop

>>> for t in np.linspace(0, 1, 3):
...   s.X = np.random.rand(3)
...   s.store(t)

Get the stored data

>>> s.data()
[[0     0.37  0.76  0.20]
[0.5    0.93  0.28  0.59]
[1      0.79  0.39  0.33]]

Get the time-series of the data

>>> s.data('t')
[0  0.5  1]

Get data of a variable

>>> s.data('x')[1]
[0.37  0.93  0.79]

Get time-series and data of a variable

>>> time, y_data = s.data('y')
>>> time
[0  0.5  1]
>>> y_data
[0.76  0.28  0.39]

Get the state at a given time

>>> s.timestate(t = 0.5)
[0.93  0.28  0.59]

Plot the histories of a variable

>>> s.plot('z')

State Construction#

A state instance is created by calling the state constructor with pairs of variables that compose the state and their initial conditions. For example, a state of two variables, \(var1\) and \(var2\), is created by:

>>> s = c4d.state(var1 = 0, var2 = 0)

The list of the variables that form the state is given by print(s).

>>> print(s)
[ var1  var2 ]

Initial conditions

The variables must be passed with initial values. These values may be retrieved later by calling X0:

>>> s.X0
[0  0]

When the initial values are not known at the stage of constructing the state object, it’s possible to pass zeros and override them later by direct assignment of the state variable with a 0 suffix, s.var10 = 100, s.var20 = 200. See more at state.X0.

Adding variables

Adding state variables outside the constructor is possible by using addvars(**kwargs), where kwargs represent the pairs of variables and their initial conditions as calling the state constructor:

>>> s.addvars(var3 = 0)
>>> print(s)
[ var1  var2  var3 ]

Parameters

All the variables that passed to the state constructor are considered state variables, and only these variables. Parameters, i.e. data attributes that are added to the object outside the constructor (the __init__ method), as in:

>>> s.parameter = 0

are considered part of the object attributes, but are not part of the object state:

>>> print(s)
[ var1  var2  var3 ]

See Also#

State

The state class


Predefined States#

C4dynamics includes several pre-defined state objects optimized for particular tasks.

Each one of the states in the library is inherited from the state class and has the benefit of its attributes, like store() data() etc.


1. Data Point#

C4dynamics provides built-in entities for developing and analyzing algorithms of objects in space and time:

datapoint: a class defining a point in space: position, velocity, and mass.

rigidbody: a class rigidbody a class defining a rigid body in space, i.e. an object with length and angular position.

../_images/body_states.svg

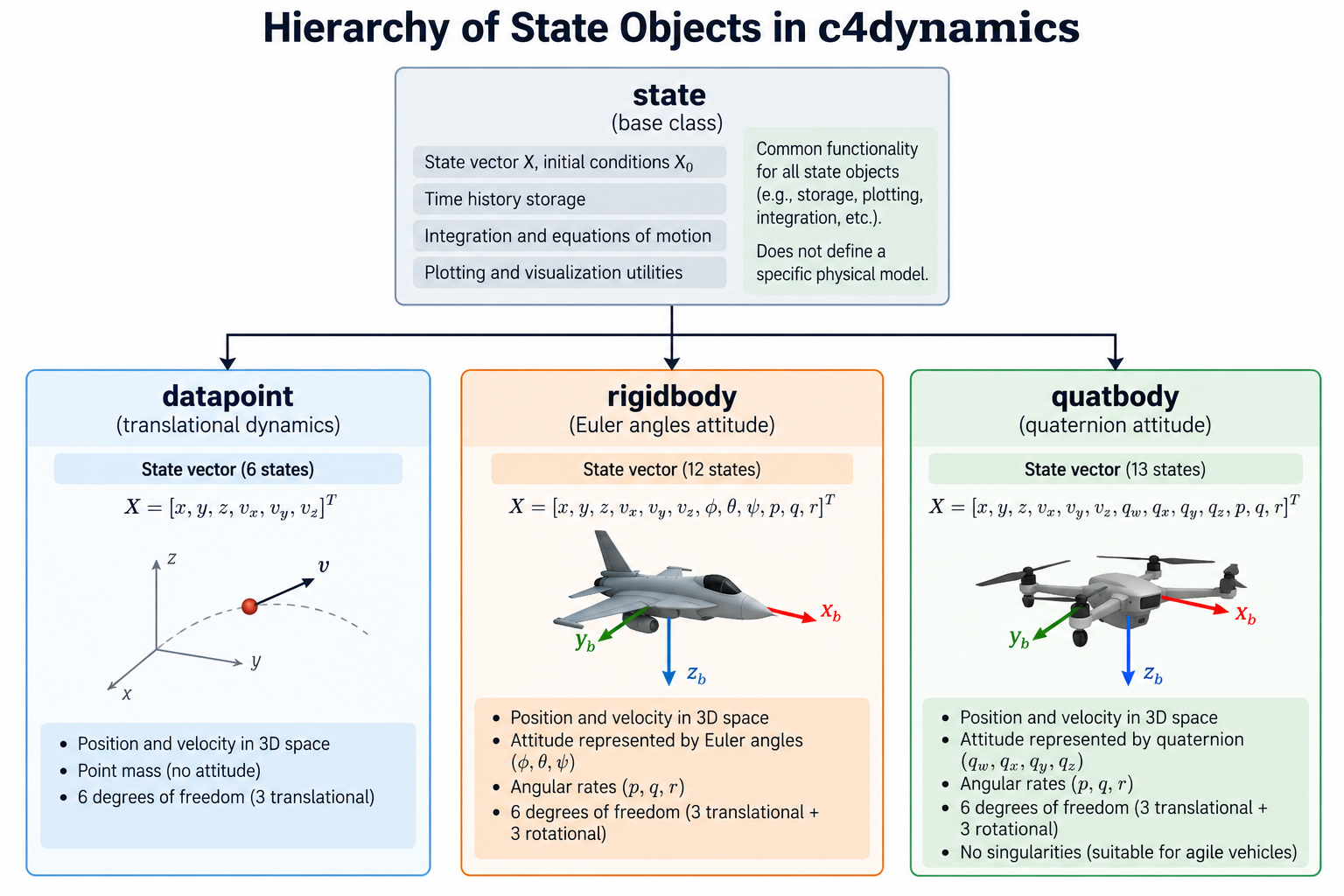

Figure: Conceptual diagram showing the relationship between the two fundamental objects used to describe bodies in space: 1) the datapoint, 2) the rigidbody. A rigidbody object extends the datapoint by adding on it body rotational motion.#

The datapoint is the most basic element in translational dynamics; it’s a point in space.

A datapoint serves as the building block for modeling and simulating the motion of objects in a three-dimensional space. In the context of translational dynamics, a datapoint represents a point mass in space with defined Cartesian coordinates \((x, y, z)\) and associated velocities \((v_x, v_y, v_z)\).

Data Attributes#

State variables:

\[X = [x, y, z, v_x, v_y, v_z]^T\]
  • Position coordinates, velocity coordinates.

Parameters:

  • mass: point mass.

Construction#

A datapoint instance is created by making a direct call to the datapoint constructor:

>>> from c4dynamics import datapoint
>>> dp = datapoint()
>>> print(dp)
[ x  y  z  vx  vy  vz ]

Initialization of an instance does not require any mandatory parameters. However, setting values to any of the state variables uses as initial conditions:

>>> dp = datapoint(x = 1000, vx = -100)

Functionality#

The inteqm() method uses the Runge-Kutta integration technique to evolve the state in response to external forces. The mechanics underlying the equations of motion can be found here.

The method plot() adds on the standard state.plot() the option to draw trajectories from side view and from top view.


2. Rigid Body#

The rigidbody class extends the functionality of the datapoint.

It introduces additional attributes related to rotational dynamics, such as angular position, angular velocity, and moment of inertia. The class leverages the capabilities of the datapoint class for handling translational dynamics and extends it to include rotational aspects. See the figure above.

Data Attributes#

State variables:

\[X = [x, y, z, v_x, v_y, v_z, {\varphi}, {\theta}, {\psi}, p, q, r]^T\]
  • Position, velocity, angles, angle rates.

Parameters:

  • mass: point mass.

  • I: vector of moments of inertia about 3 axes.

Construction#

A rigidbody instance is created by making a direct call to the rigidbody constructor:

>>> from c4dynamics import rigidbody
>>> rb = rigidbody()
>>> print(rb)
[ x  y  z  vx  vy  vz  φ  θ  ψ  p  q  r ]

Similar to the datapoint, initialization of an instance does not require any mandatory parameters. Setting values to any of the state variables uses as initial conditions:

>>> from c4dynamics import d2r
>>> rb = rigidbody(theta = 10 * d2r, q = -1 * d2r)

Functionality#

The inteqm() method uses the Runge-Kutta integration technique to evolve the state in response to external forces and moments. The mechanics underlying the equations of motion can be found here and here.

BR and RB return Direction Cosine Matrices, Body from Reference ([BR]) and Reference from Body ([RB]), with respect to the instantaneous Euler angles (\(\varphi, \theta, \psi\)).

When a 3D model is provided, the method animate() animates the object with respect to the histories of the rigidbody attitude.


3. Pixel Point#

The pixelpoint class representing a data point in a video frame with a bounding box.

This class is particularly useful for applications in computer vision, such as object detection and tracking.

Data Attributes#

State variables:

\[X = [x, y, w, h]^T\]
  • Center pixel, box size.

Parameters:

  • fsize: frame size.

  • class_id: object classification.

Construction#

Usually, the pixelpoint instance is created immediately after an object detection:

>>> from c4dynamics import pixelpoint
>>> pp = pixelpoint(x = 50, y = 50, w = 15, h = 25) # (50, 50) detected object center, (15, 25) object bounding box
>>> pp.fsize = (100, 100)   # frame width and frame height
>>> pp.class_id = 'fox'
>>> print(pp)
[ x  y  w  h ]

Functionality#

box returns the bounding box in terms of top-left and bottom-right coordinates.

See Also#

State

The state class

Pre-defined state objects

datapoint

A point in space

rigidbody

Rigid body object

pixelpoint

A pixel point in an image
