c4dynamics.datasets.d3_model

c4dynamics.datasets.d3_model(d3_name: str) → str

Fetches the path of a 3D model from the local cache.

d3_model downloads and manages 3D model files from c4dynamics datasets.

Model Name	Description
bunny	Point cloud file of Stanford bunny (bunny.pcd, 0.4MB)
bunny_mesh	Polygon file of Stanford bunny (bunny_mesh.ply, 3MB)
F16	A folder of 10 stl files, representing the jet parts as fuselage, ailerons, cockpit, rudder and stabilators (10 files, total 3MB).

The models can be found at C4dynamics/C4dynamics

Parameters:

d3_name (str) – The name of the 3D model to download

Returns:

out (str) – A path to the model in the local cache. For the f16 model, the function returns a path to the folder including 10 files.

Examples

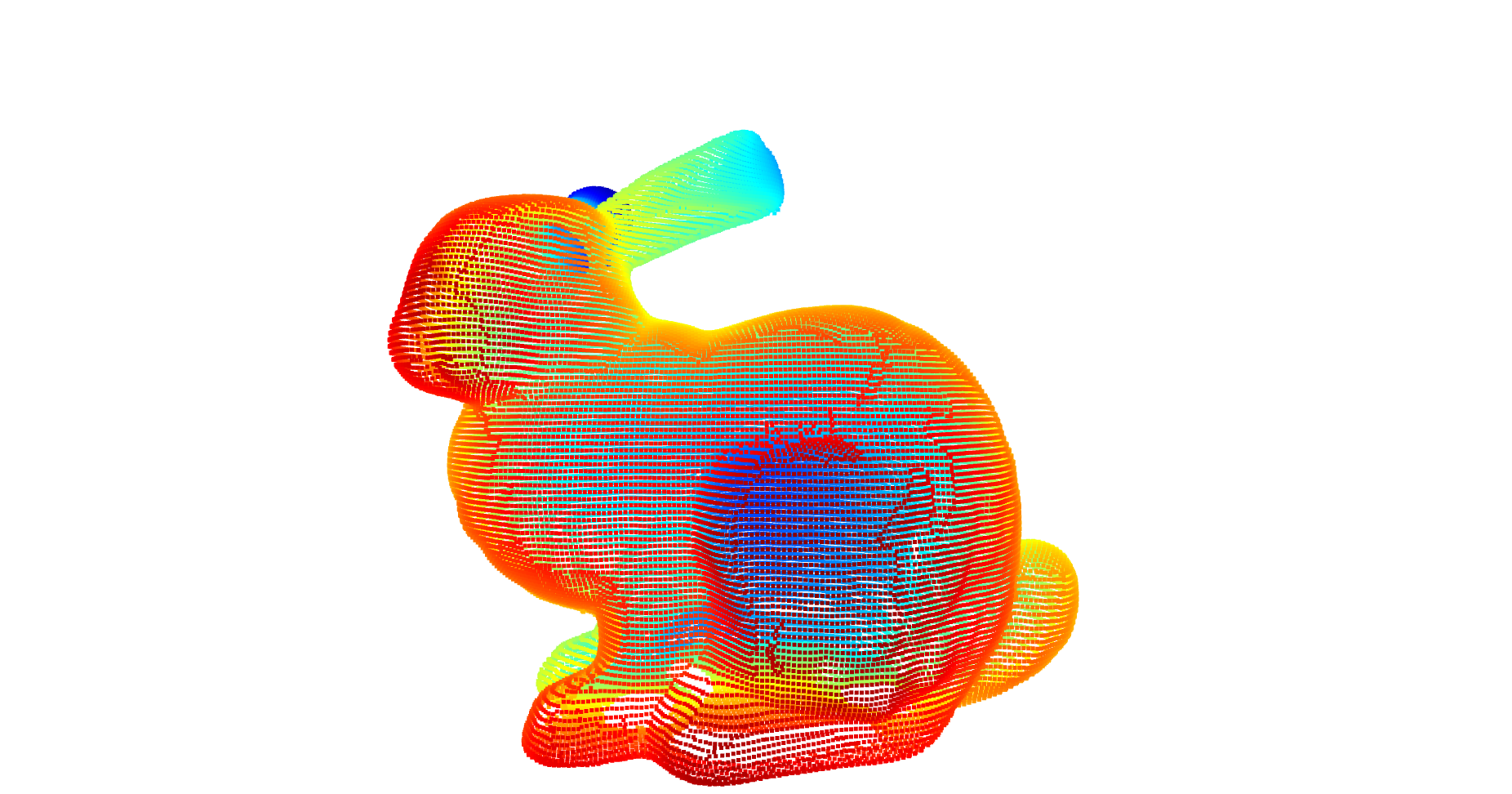

Stanford bunny (point cloud)

Import required packages:

>>> import c4dynamics as c4d
>>> import open3d as o3d
>>> import os

>>> bunnypath = c4d.datasets.d3_model('bunny')
Fetched successfully
>>> pcd = o3d.io.read_point_cloud(bunnypath)
>>> print(pcd)
PointCloud with 35947 points.
>>> o3d.visualization.draw_geometries([pcd])

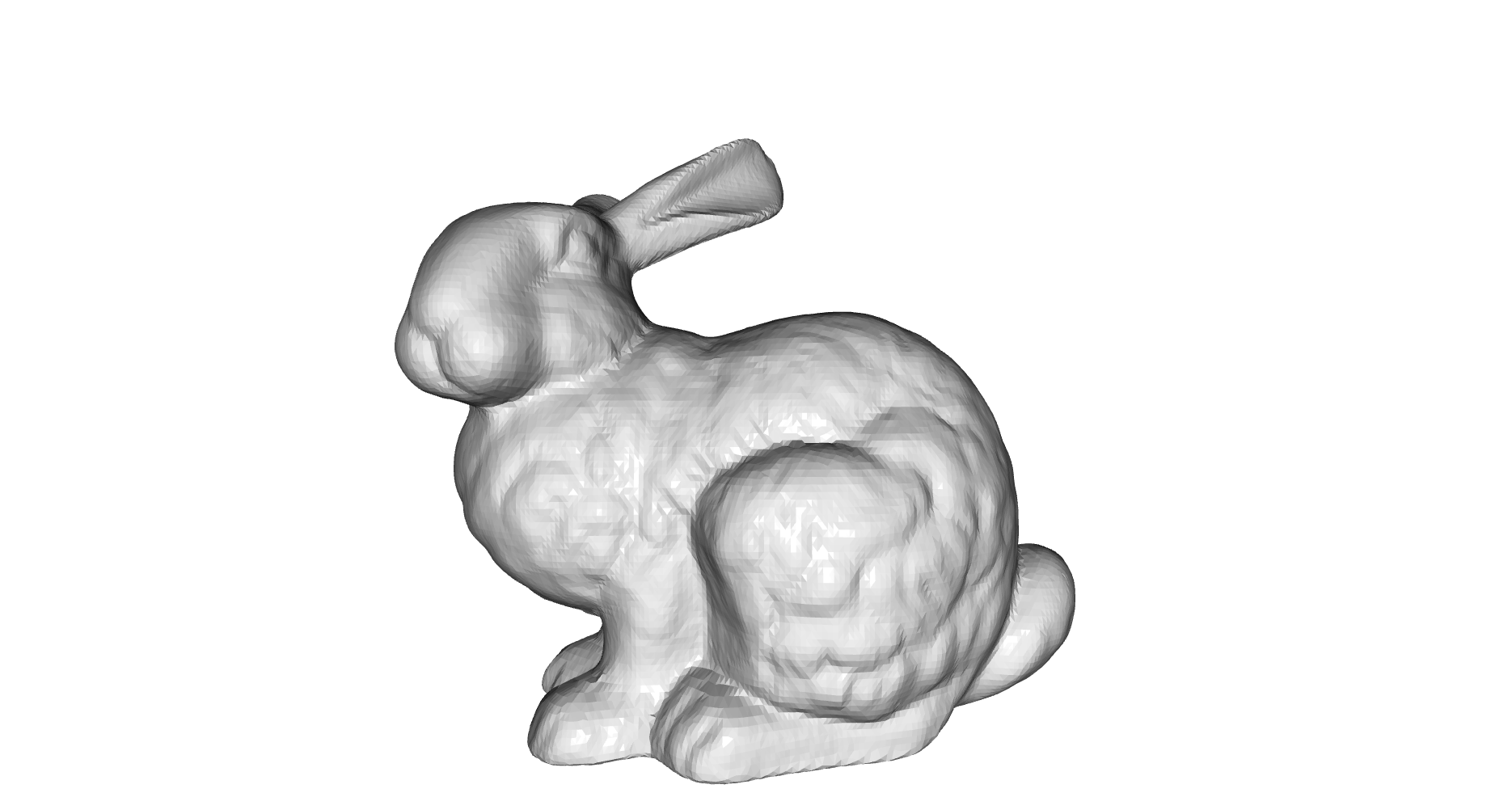

Stanford bunny (triangle mesh)

>>> mbunnypath = c4d.datasets.d3_model('bunny_mesh')
Fetched successfully
>>> ply = o3d.io.read_triangle_mesh(mbunnypath)
>>> ply.compute_vertex_normals()
>>> print(ply)
TriangleMesh with 35947 points and 69451 triangles.
>>> o3d.visualization.draw_geometries([ply])

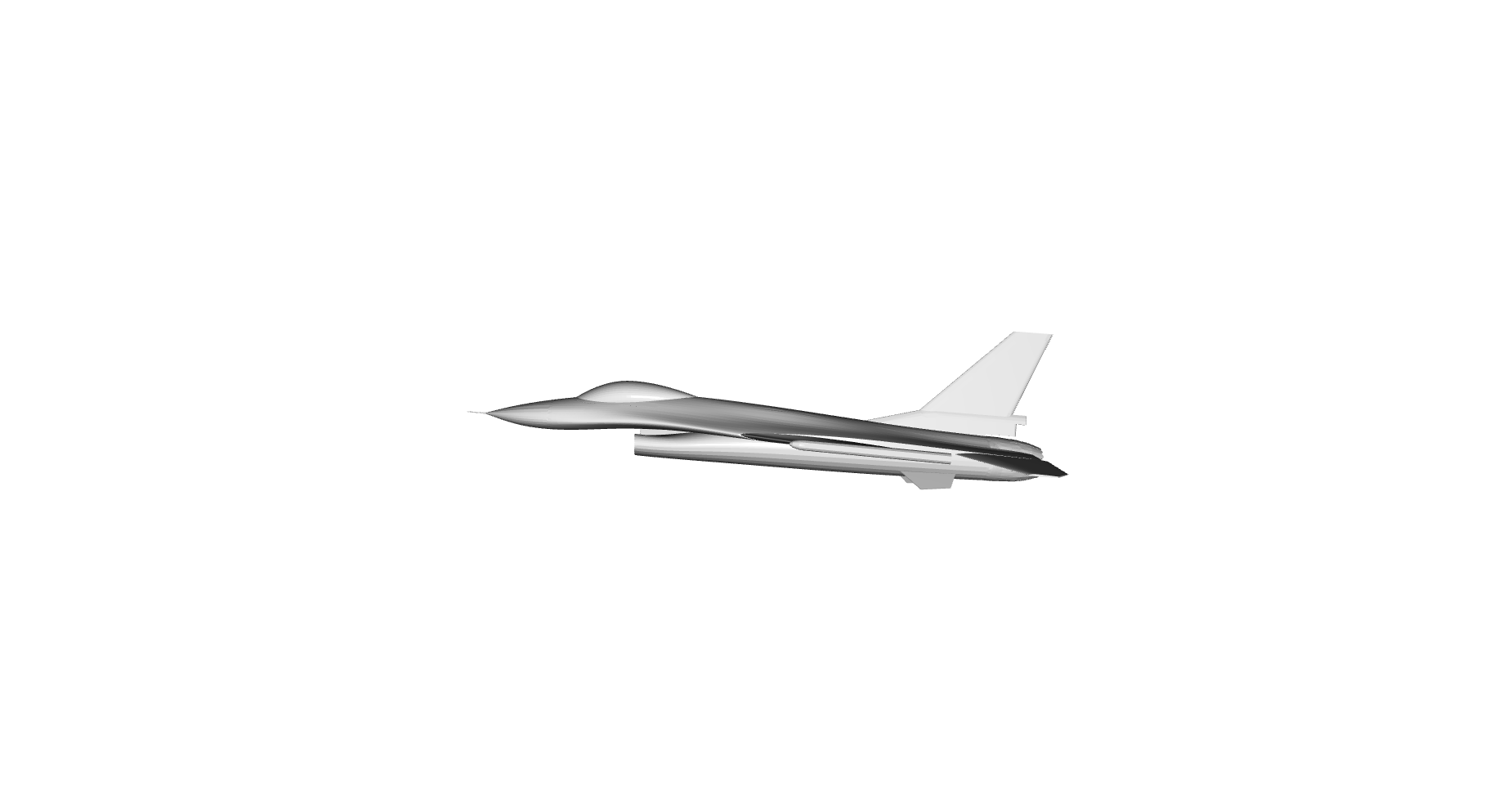

F16 (10 stl files)

>>> f16path = c4d.datasets.d3_model('f16')
Fetched successfully
>>> model = []
>>> for f in sorted(os.listdir(f16path)):
...   model.append(o3d.io.read_triangle_mesh(os.path.join(f16path, f)).compute_vertex_normals())
>>> o3d.visualization.draw_geometries(model)
