GPS#

class c4dynamics.sensors.navigation.gps(noise_std=0.5, bias=None, isideal=False)[source]#

GPS receiver.

The gps class models a GPS receiver that measures the inertial position of a vehicle in terms of [x, y, z]. The measurement is affected by a constant bias and sample-to-sample white Gaussian noise.

Parameters:

  • noise_std (float, optional) – Standard deviation of the position measurement noise, [m]. Defaults to 0.5.

  • bias (array_like, optional) – Constant position bias [bx, by, bz], [m]. Defaults to [0, 0, 0].

  • isideal (bool, optional) – If True, overrides noise_std and bias to zero, producing an ideal (noise-free, bias-free) GPS. Defaults to False.

See also

ekf, seeker

Functionality

At each sample the GPS returns a position measurement based on the true inertial position of the vehicle. If the true state is

\[X = [x, y, z, v_x, v_y, v_z, \varphi, \theta, \psi, p, q, r]^T\]

the ideal position measurement is

\[z_{ideal} = [x, y, z]^T.\]

The simulated measurement is

\[z = z_{ideal} + b + n\]

where \(b\) is the constant bias and \(n\) is a zero-mean Gaussian random variable with standard deviation noise_std applied independently to each position coordinate.

Errors Model

The GPS measurement is subject to two error sources: bias and noise.

  • Bias: represents a constant offset in the measured position. It is set when the GPS object is constructed through the bias parameter and remains unchanged between measurements. When bias is not provided, the bias is [0, 0, 0].

  • Noise: represents random variations in the position measurement. At every call to measure, an independent normally distributed random vector with mean zero and standard deviation noise_std is added to the position.

The errors model can be disabled by setting noise_std = 0 and bias = [0, 0, 0]. This produces an ideal position measurement.

Unlike the seeker model, the GPS implementation does not generate a random bias during construction and does not include a scale-factor error. The supplied bias is deterministic for a given GPS instance.

Construction

A GPS instance is created by making a direct call to the constructor:

>>> gps_sensor = c4d.sensors.gps()

The measurement noise and constant bias can be specified when creating the sensor.

Examples

Import required packages:

>>> import c4dynamics as c4d
>>> from matplotlib import pyplot as plt
>>> import numpy as np

True trajectory

For the examples below, generate a smooth 3D trajectory and store its position in a 12-state vector.

>>> t = np.arange(0, 20, 0.1)
>>> x_true = np.zeros((len(t), 12))
>>> x_true[:, 0] = 5 * np.sin(0.3 * t)
>>> x_true[:, 1] = 4 * np.cos(0.25 * t)
>>> x_true[:, 2] = -2 + 0.5 * np.sin(0.6 * t)

Ideal GPS

An ideal GPS can be created by setting both the noise and the bias to zero:

>>> gps_ideal = c4d.sensors.gps(noise_std=0, bias=[0, 0, 0])
>>> measurements = np.array([gps_ideal.measure(x) for x in x_true])

The measured position is then identical to the true position.

>>> np.allclose(measurements, x_true[:, 0:3])
True

Non-ideal GPS

A non-ideal GPS introduces a constant position bias and white measurement noise. Set the random seed to make the example reproducible:

>>> np.random.seed(42)
>>> gps_sensor = c4d.sensors.gps(
...     noise_std=0.5,
...     bias=[1.0, -0.5, 0.2]
... )
>>> measurements = np.array([gps_sensor.measure(x) for x in x_true])

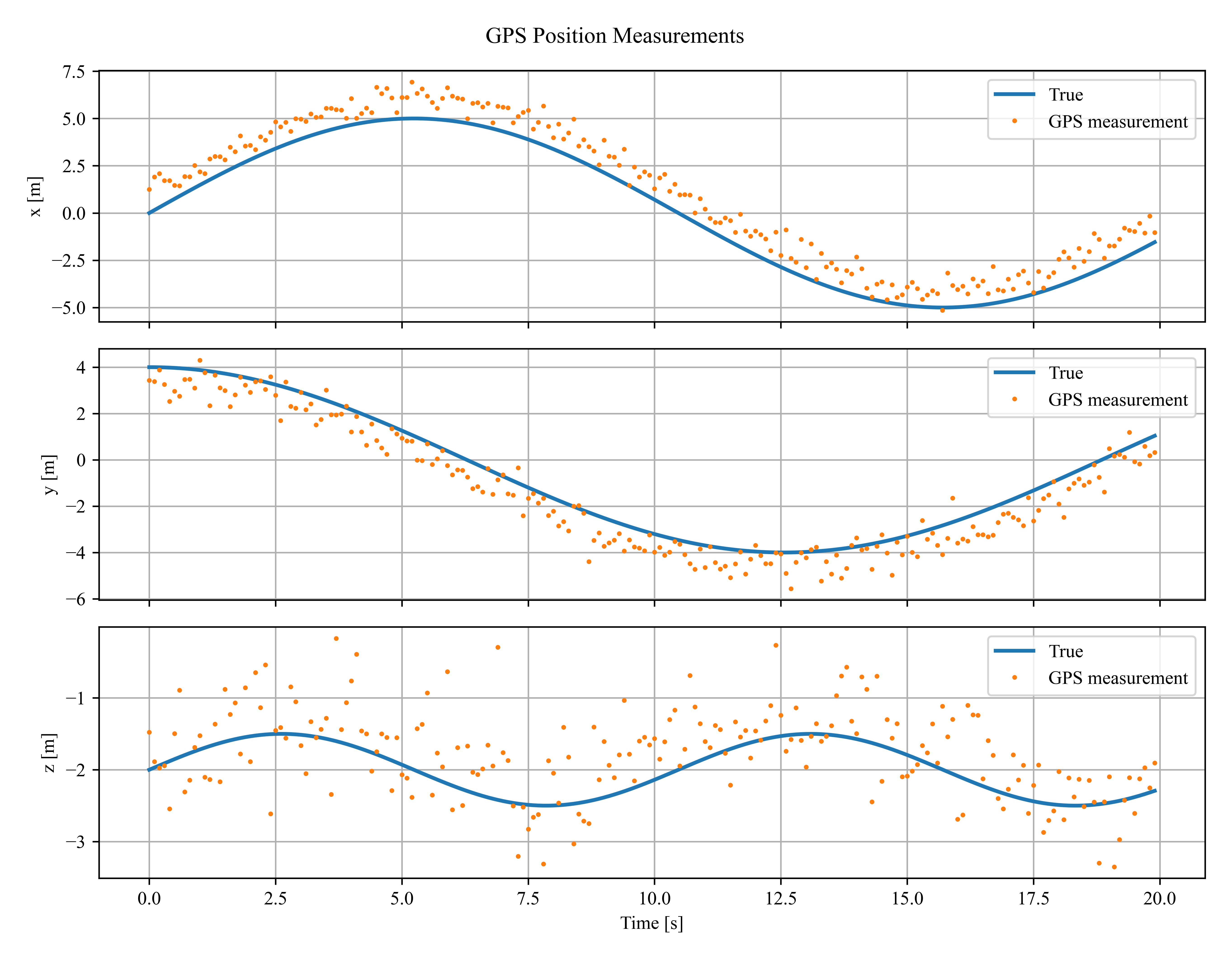

The result can be compared with the true position:

>>> fig, ax = plt.subplots(3, 1, figsize=(9, 7), sharex=True)
>>> labels = ['x', 'y', 'z']
>>> for i in range(3):
...     ax[i].plot(t, x_true[:, i], lw=2, label='True')
...     ax[i].plot(t, measurements[:, i], '.', ms=3, label='GPS measurement')
...     ax[i].set_ylabel(f'{labels[i]} [m]')
...     ax[i].grid(True)
...     ax[i].legend()
>>> ax[-1].set_xlabel('Time [s]')
>>> fig.suptitle('GPS Position Measurements')
>>> fig.tight_layout()
../_images/gps.png

Bias

The bias is constant across all measurements. For example, a GPS with a 2m bias in the x direction can be created as follows:

>>> gps_bias = c4d.sensors.gps(noise_std=0, bias=[2, 0, 0])
>>> measurement = gps_bias.measure(x_true[0])
>>> print(measurement - x_true[0, 0:3])
[2.  0.  0.]

The difference between the measurement and the true position is the specified bias.

Measurement noise

With zero bias, repeated measurements of the same state demonstrate the random noise generated at every call to measure:

>>> np.random.seed(1)
>>> gps_noise = c4d.sensors.gps(noise_std=0.5, bias=[0, 0, 0])
>>> for _ in range(3):
...     print(gps_noise.measure(x_true[0]))
[ 0.812  3.694  -2.264]
[-0.536  4.433  -3.151]
[ 0.872  3.619  -1.840]

Demo

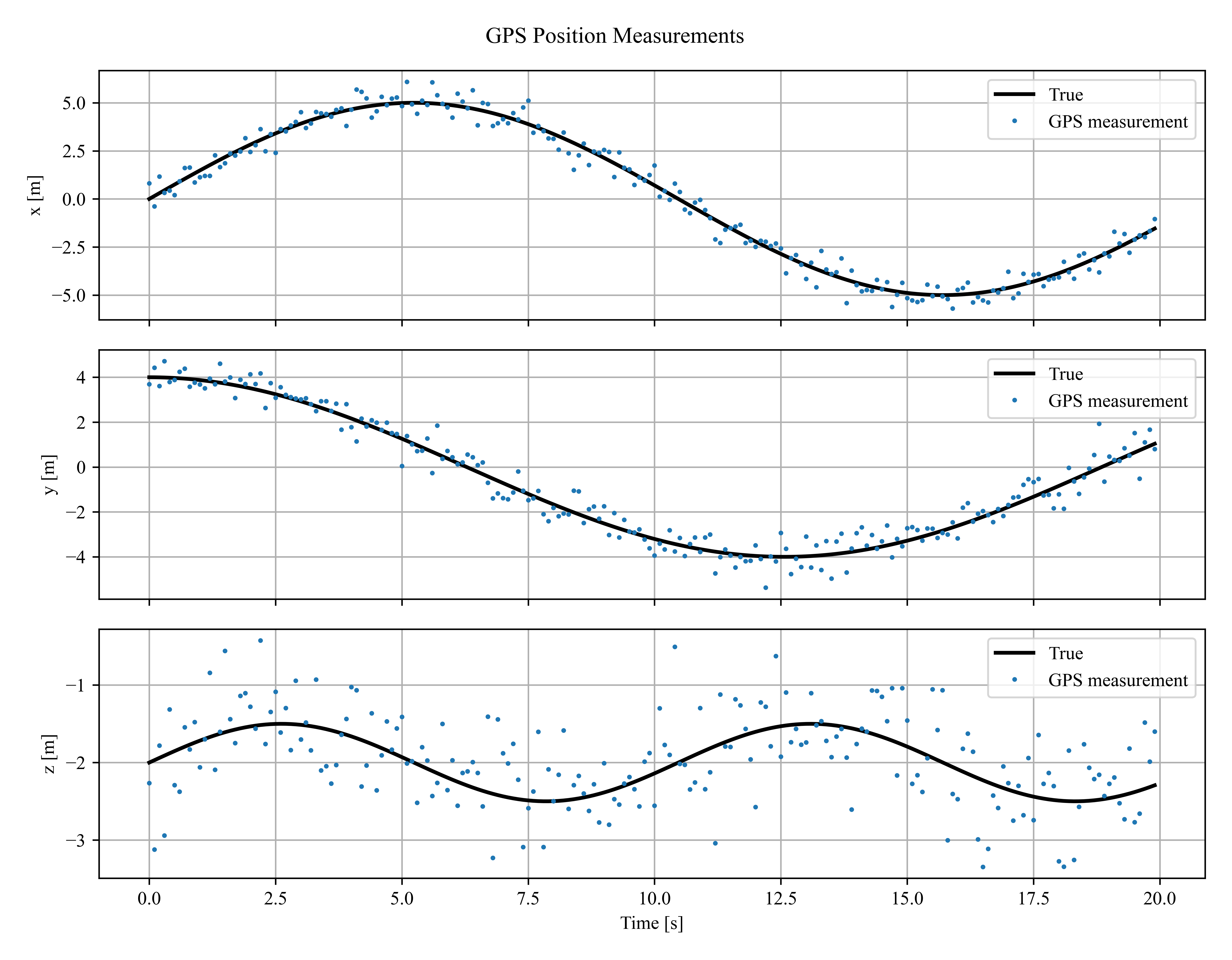

The built-in demo method provides a compact demonstration of the GPS errors model and plots the true and measured positions:

>>> fig = c4d.sensors.gps.demo(show=True)
../_images/gps_demo.png

The same demonstration can be run without displaying the figure by using show=False.

Methods

gps.measure(x_true)

Measure inertial position.
